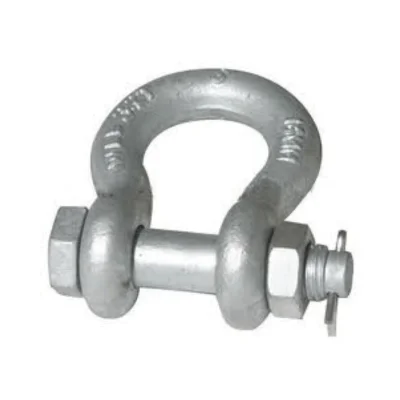

Designed for secure anchoring in marine and industrial applications, the Safety Anchor Shackle provides a strong, stable connection with an added locking mechanism to prevent accidental pin release.
| WLL (tons) | Weight (lbs) | Dimension A (in) | Dimension B PIN (in) | Dimension C (in) | Dimension D (in) | Dimension E (in) | Dimension F (in) |
|---|---|---|---|---|---|---|---|
| 1/2 | 0.12 | 1/4 | 5/16 | 1.14 | 0.49 | 0.7 | 0.75 |
| 3/4 | 0.18 | 5/16 | 3/8 | 1.23 | 0.53 | 0.83 | 0.80 |
| 1 | 0.32 | 3/8 | 7/16 | 1.41 | 0.69 | 0.98 | 1.01 |
| 1-1/2 | 0.45 | 7/16 | 1/2 | 1.70 | 0.72 | 1.06 | 1.13 |
| 2 | 0.68 | 1/2 | 5/8 | 1.83 | 0.83 | 1.18 | 1.25 |
| 3-1/4 | 1.36 | 5/8 | 3/4 | 2.36 | 1.06 | 1.55 | 1.67 |
| 4-3/4 | 2.24 | 3/4 | 7/8 | 2.76 | 1.24 | 1.78 | 1.98 |
| 6-1/2 | 3.50 | 7/8 | 1 | 3.29 | 1.42 | 2.09 | 2.25 |
| 8-1/2 | 5.00 | 1 | 1-1/8 | 3.69 | 1.75 | 2.35 | 2.66 |
| 9-1/2 | 7.65 | 1-1/8 | 1-1/4 | 4.23 | 1.80 | 2.71 | 2.79 |
| 12 | 10.40 | 1-1/4 | 1-3/8 | 4.63 | 2.12 | 3.01 | 3.15 |
| 13-1/2 | 13.80 | 1-3/8 | 1-1/2 | 5.17 | 2.30 | 3.32 | 3.60 |
| 17 | 17.90 | 1-1/2 | 1-5/8 | 5.67 | 2.39 | 3.63 | 3.85 |
| 25 | 27.90 | 1-3/4 | 2 | 7.06 | 2.96 | 4.23 | 4.99 |
| 35 | 42.70 | 2 | 2-1/4 | 7.75 | 3.31 | 5.11 | 5.59 |
| 55 | 85.00 | 2-1/2 | 2-3/4 | 10.25 | 4.00 | 5.75 | 7.00 |
| 85 | 125.00 | 3 | 3-1/4 | 13.00 | 5.00 | 6.50 | 7.88 |
