Products

Aids To Navigation

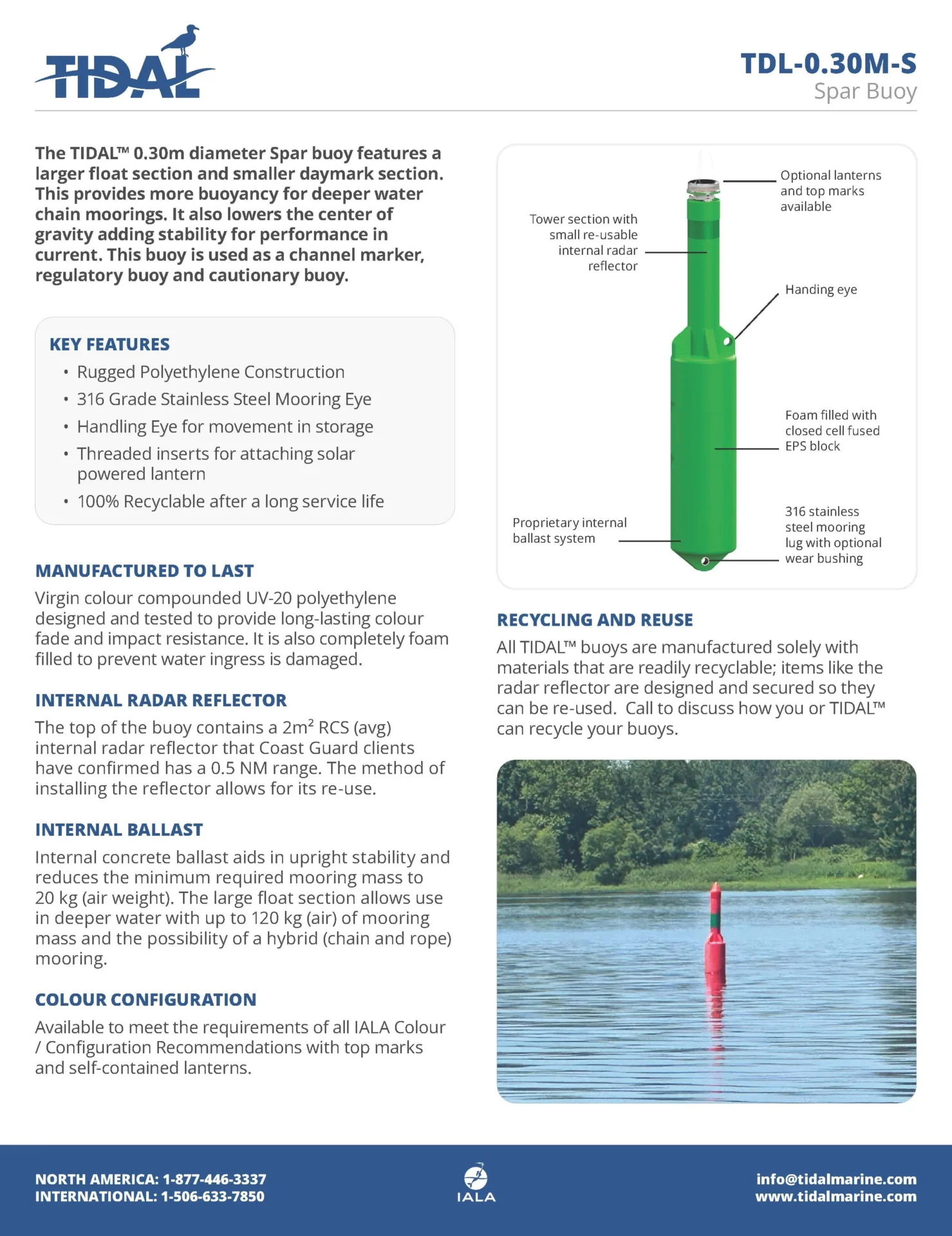

DESCRIPTION

The TIDAL™ 0.30m diameter Spar buoy features a larger float section and smaller daymark section. This provides more buoyancy for deeper water chain moorings. It also lowers the center of gravity adding stability for performance in current. This buoy is used as a channel marker, regulatory buoy and cautionary buoy.

SUMMARY SPECIFICATIONS
Diameter
0.37 m
Height
2.20 m
Mass
37 kg
SUBMERGENCE (Freshwater)
1.06 kg /cm
VISIBLE HEIGHT (at Min. Mooring Mast)
1.58 m
FOCAL PLANE (at Min. Mooring Mass)
1.55 m
MINIMUM MOORING MASS
20 kg
MAXIMUM MOORING MASS
55 kg
VISUAL RANGE (at Max Focal Plane)
0.93 Km
RADAR RANGE
0.93 Km
INTERNAL RADAR (RCS)
2 m²
KEY FEATURES
  • Rugged polyethylene construction
  • 316L stainless steel mooring eye
  • Handling eye for movement in storage
  • Threaded inserts for solar powered lantern
  • 100% Recyclable after a long service life
