Products

Aids To Navigation

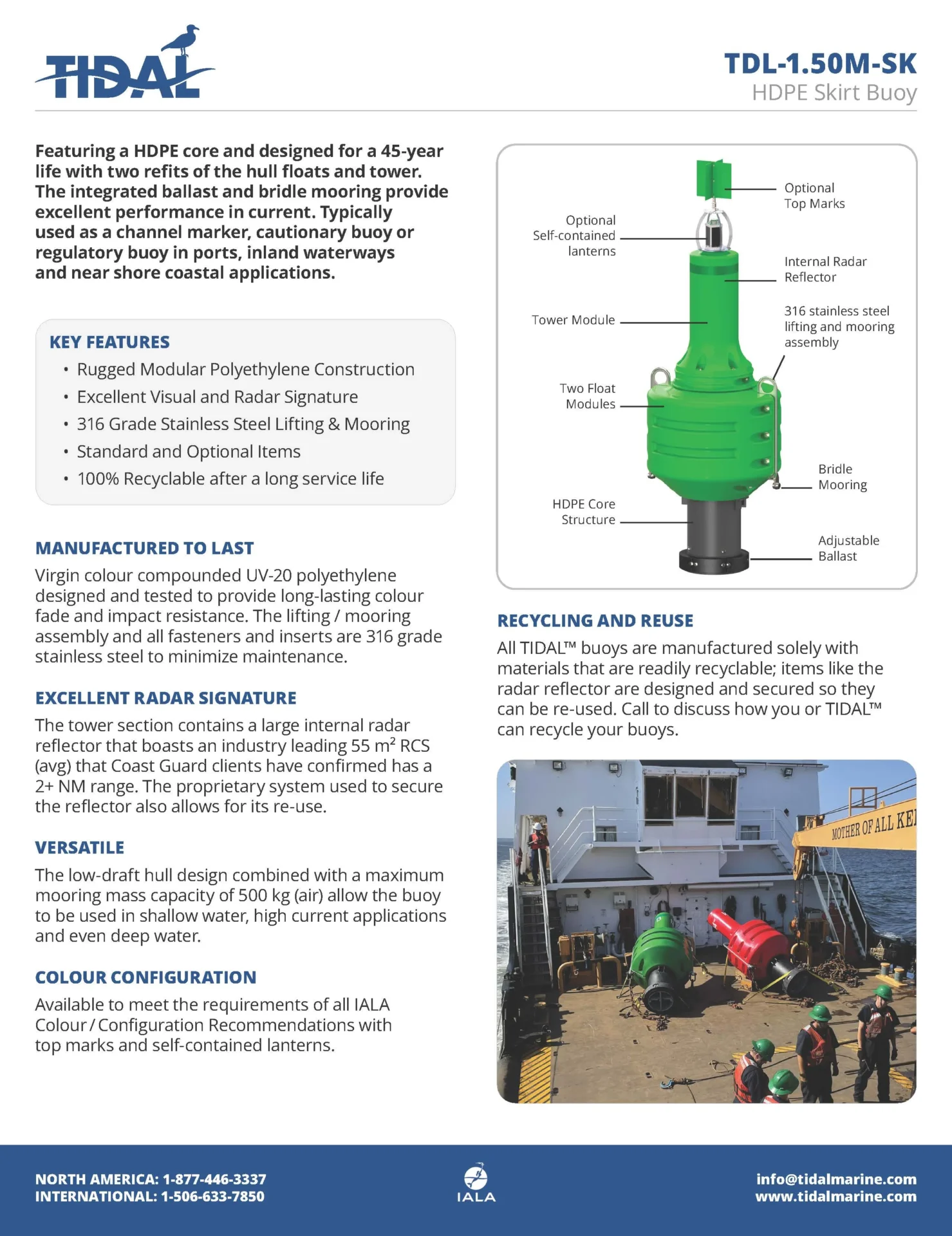

Key Dimensions
Features & Benefits
Specifications
Diameter
1.50 m
Height
3.66 m
Mass
680 kg
Hull Floatation Volume
1.78 m³
Submergence
17.6 kg/cm
Max. Mooring Mass (Air Weight)
500 kg
Min. Mooring Mass (Air Weight)
100 kg
Draught (at Min. Mooring Mass)
1.45 m
Reserve Buoyancy (at Maximum Mooring Mass)
740 kg
Features
  • Rugged Modular Polyethylene Construction
  • Excellent Visual and Radar Signature
  • 316 Grade Stainless Steel Lifting & Mooring
  • Standard and Optional Items
  • 100% Recyclable after a long service life
Benefits

Featuring a HDPE core and designed for a 45-year life with two refits of the hull floats and tower. The integrated ballast and bridle mooring provide excellent performance in current. Typically used as a channel marker, cautionary buoy or regulatory buoy in ports, inland waterways and near shore coastal applications.
