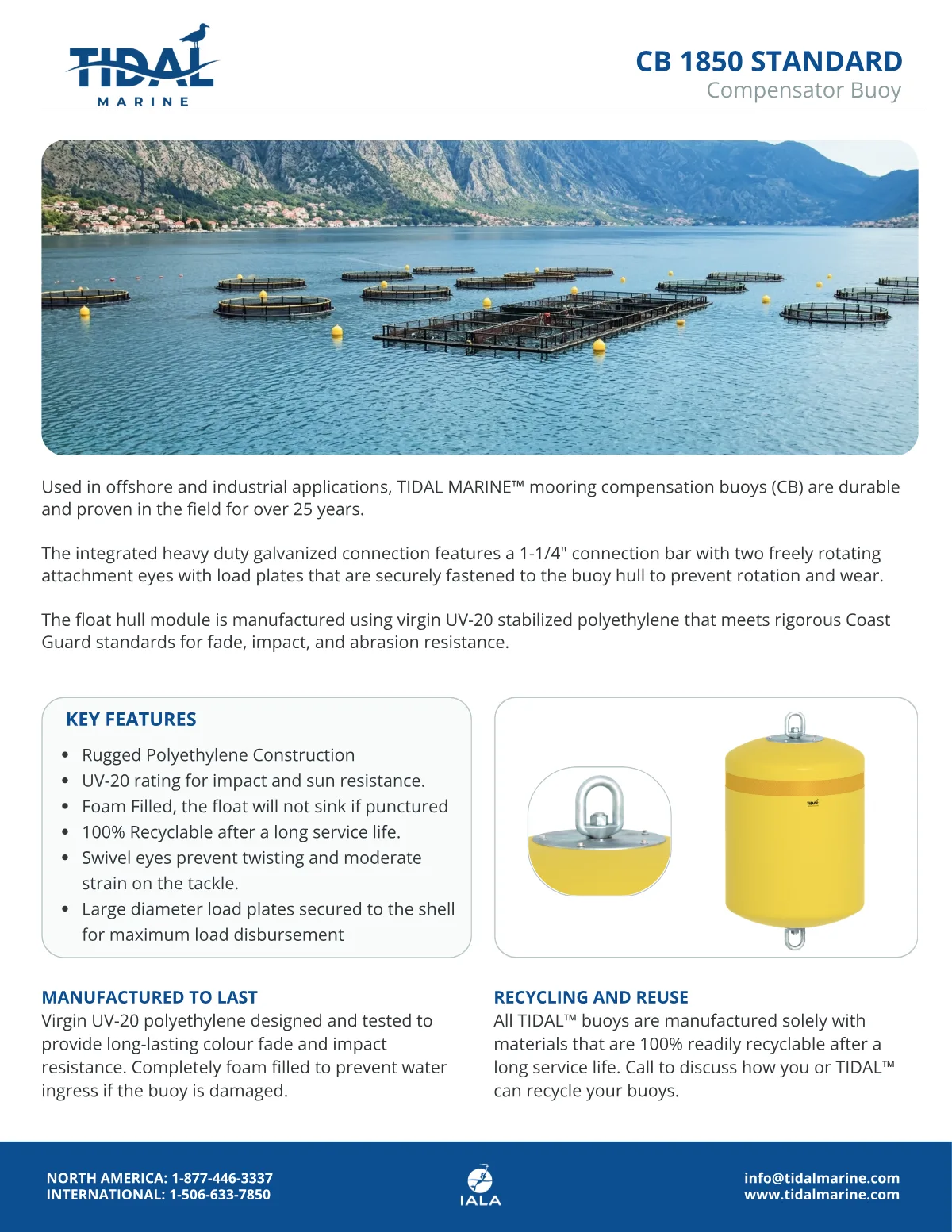

Used in offshore and industrial applications, TIDAL MARINE™ mooring compensation buoys (CB) are durable and proven in the field for over 25 years. The integrated heavy duty galvanized connection features a 1-1/4″ connection bar with two freely rotating attachment eyes with load plates that are securely fastened to the buoy hull to prevent rotation and wear. The float hull module is manufactured using virgin UV-20 stabilized polyethylene that meets rigorous Coast Guard standards for fade, impact, and abrasion resistance.
| GENERAL SPECIFICATIONS | ||
|---|---|---|
| Net Buoyancy | 4,066 lbs | 1,844 kg |
| Total Volume | 70 ft³ | 1,985 L |
| Float Diameter | 52.5 in | 1,334 mm |
| Float Height | 62.0 in | 1,575 mm |
| Overall Length | 77.0 in | 1,956 mm |
| MATERIAL SPECIFICATIONS | ||
| Air Weight | 310 lbs | 141 kg |
| Hull Material | Polyethylene | |
| Hull Thickness | 0.375 in | 9.50 mm |
| U.V. Rating | UV-20 | |
| Connection Hardware Material | Heavy Duty Galvanized Steel | |
| Connection Hardware Bar Size | 1.25 in | 32 mm |
| Mooring & Lifting Eye I.D. | 3.13 in | 79 mm |
| Internal Buoyancy Material | Closed Cell Fused In-Situ EPS Block | |
| Environmental Impact | 100% Recyclable | |
