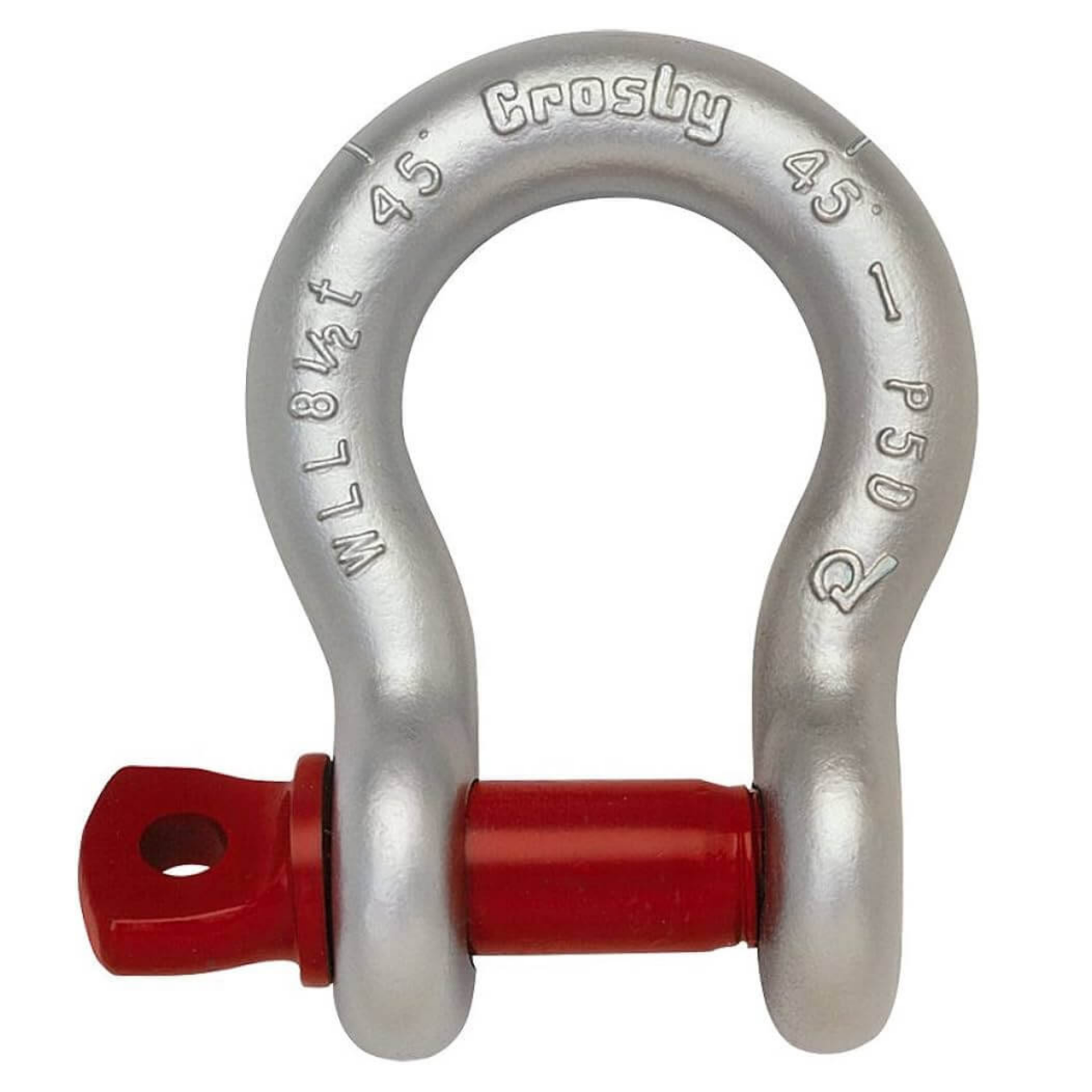

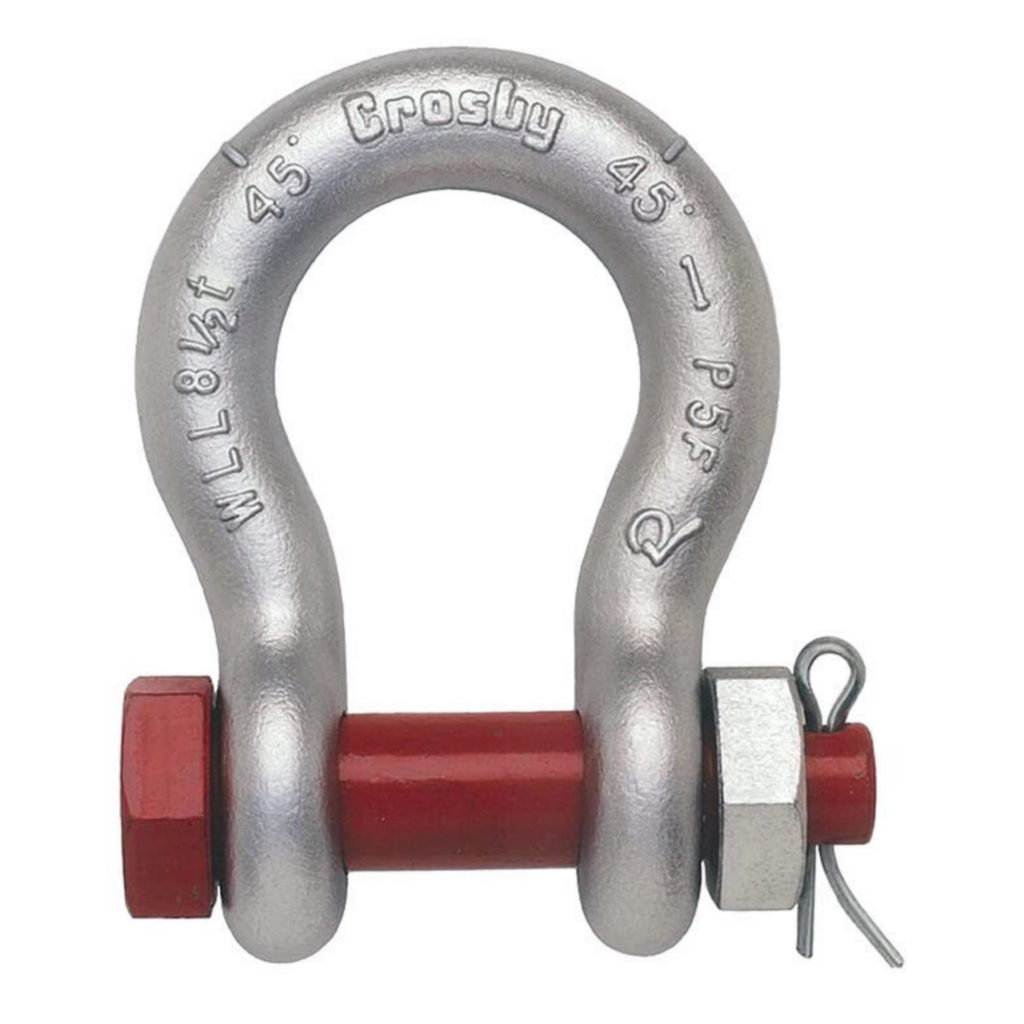

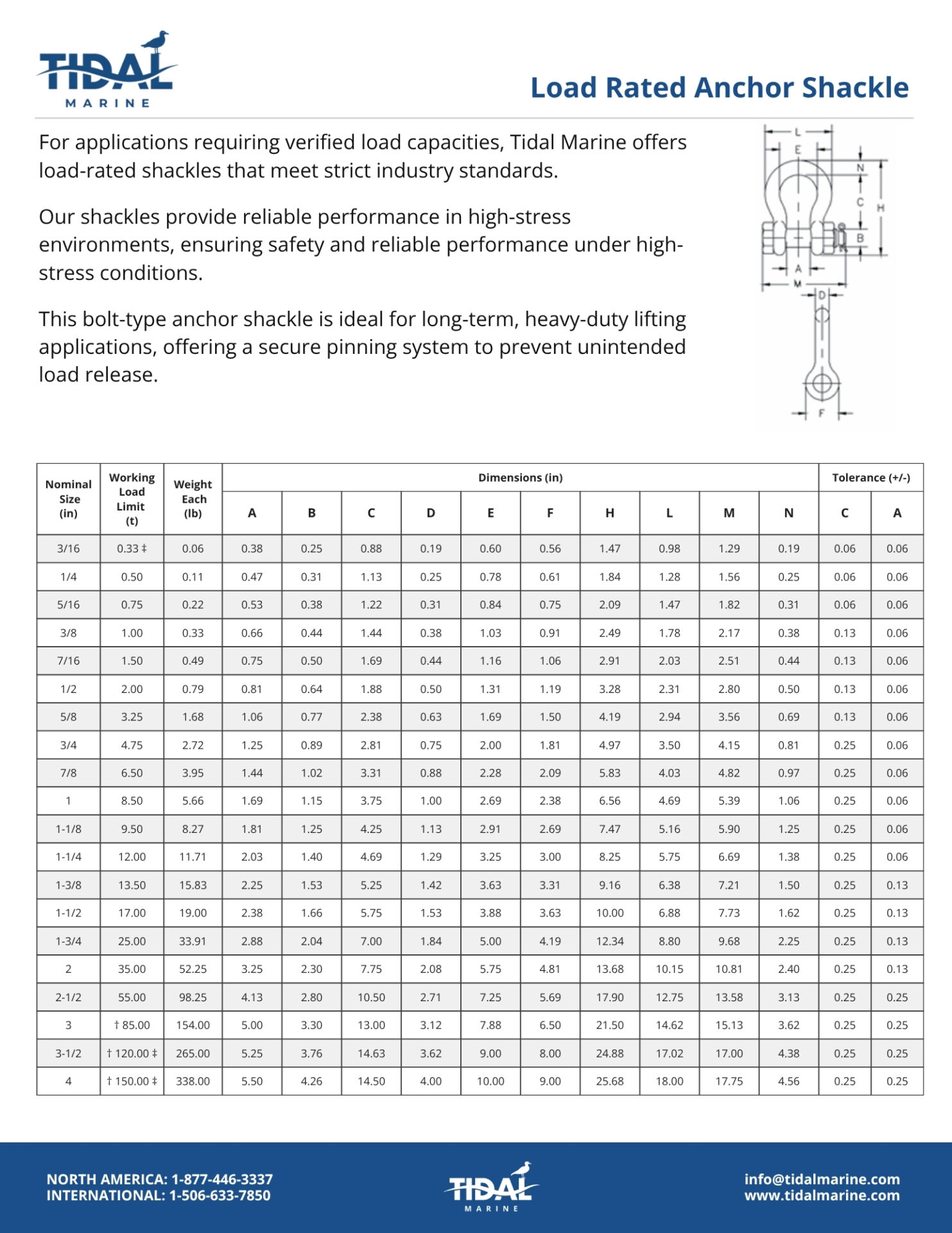

For applications requiring verified load capacities, Tidal Marine offers load-rated shackles that meet strict industry standards. Load Rated Screw Pin Shackle designed for applications requiring quick and easy rigging, this screw pin anchor shackle provides a secure yet easily removable connection The primary advantage of a screw pin anchor shackle is versatility. Screw pins can be tightened and loosened by hand or with a simple marlinspike.
| Nominal Size (in) | Working Load Limit (t) | Weight Each (lb) | Dimension A (in) | Dimension B (in) | Dimension C (in) | Dimension D (in) | Dimension E (in) | Dimension F (in) | Dimension G (in) | Dimension H (in) | Dimension L (in) | Dimension M (in) | Dimension P (in) | Tolerance C (+/-) | Tolerance A (+/-) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/16 | 0.33 | 0.06 | 0.4 | 0.3 | 0.9 | 0.2 | 0.6 | 0.6 | 0.6 | 1.5 | 0.16 | 1.14 | 0.20 | 0.06 | 0.06 |
| 1/4 | 0.50 | 0.10 | 0.5 | 0.3 | 1.1 | 0.3 | 0.8 | 0.6 | 0.6 | 1.8 | 0.19 | 1.43 | 0.30 | 0.06 | 0.06 |
| 5/16 | 0.75 | 0.18 | 0.5 | 0.4 | 1.2 | 0.3 | 0.8 | 0.8 | 0.8 | 2.1 | 0.22 | 1.71 | 0.30 | 0.06 | 0.06 |
| 3/8 | 1.00 | 0.31 | 0.7 | 0.4 | 1.5 | 0.4 | 1.0 | 0.9 | 0.9 | 2.5 | 0.25 | 2.06 | 0.40 | 0.13 | 0.06 |
| 7/16 | 1.50 | 0.38 | 0.8 | 0.5 | 1.7 | 0.4 | 1.2 | 1.1 | 1.1 | 2.9 | 0.31 | 2.37 | 0.40 | 0.13 | 0.06 |
| 1/2 | 2.00 | 0.72 | 0.8 | 0.6 | 1.9 | 0.5 | 1.3 | 1.2 | 1.2 | 3.3 | 0.38 | 2.69 | 0.50 | 0.13 | 0.06 |
| 5/8 | 3.25 | 1.37 | 1.1 | 0.8 | 2.4 | 0.6 | 1.7 | 1.5 | 1.5 | 4.2 | 0.44 | 3.34 | 0.70 | 0.13 | 0.06 |
| 3/4 | 4.75 | 2.35 | 1.3 | 0.9 | 2.8 | 0.8 | 2.00 | 1.8 | 1.8 | 5.0 | 0.50 | 3.97 | 0.80 | 0.25 | 0.06 |
| 7/8 | 6.50 | 3.62 | 1.4 | 1.0 | 3.3 | 0.9 | 2.3 | 2.1 | 2.1 | 5.8 | 0.50 | 4.50 | 1.0 | 0.25 | 0.06 |
| 1 | 8.50 | 5.03 | 1.7 | 1.1 | 3.8 | 1.00 | 2.7 | 2.4 | 2.4 | 6.6 | 0.56 | 5.13 | 1.10 | 0.25 | 0.06 |
| 1-1/8 | 9.50 | 7.41 | 1.8 | 1.3 | 4.3 | 1.2 | 2.9 | 2.7 | 2.7 | 7.5 | 0.63 | 5.97 | 1.30 | 0.25 | 0.06 |
| 1-1/4 | 12.00 | 9.50 | 2.0 | 1.4 | 4.7 | 1.3 | 3.3 | 3.0 | 3.00 | 8.3 | 0.69 | 6.50 | 1.40 | 0.25 | 0.06 |
| 1-3/8 | 13.50 | 13.53 | 2.3 | 1.5 | 5.2 | 1.4 | 3.6 | 3.3 | 3.3 | 9.2 | 0.75 | 6.93 | 1.50 | 0.25 | 0.13 |
| 1-1/2 | 17.00 | 17.20 | 2.4 | 1.6 | 5.8 | 1.5 | 3.9 | 3.6 | 3.6 | 10.0 | 0.81 | 7.43 | 1.60 | 0.25 | 0.13 |
| 1-3/4 | 25.00 | 27.78 | 2.9 | 2.0 | 7.0 | 1.8 | 5.00 | 4.2 | 4.2 | 12.0 | 1.0 | 9.19 | 2.30 | 0.25 | 0.13 |
| 2 | 35.00 | 45.00 | 3.3 | 2.3 | 7.8 | 2.1 | 5.8 | 4.8 | 4.8 | 14.0 | 1.13 | 10.40 | 2.40 | 0.25 | 0.13 |
| 2-1/2 | 55.00 | 85.75 | 4.1 | 2.8 | 11.0 | 2.7 | 7.3 | 5.8 | 5.8 | 18.0 | 1.38 | 13.20 | 3.10 | 0.25 | 0.25 |
