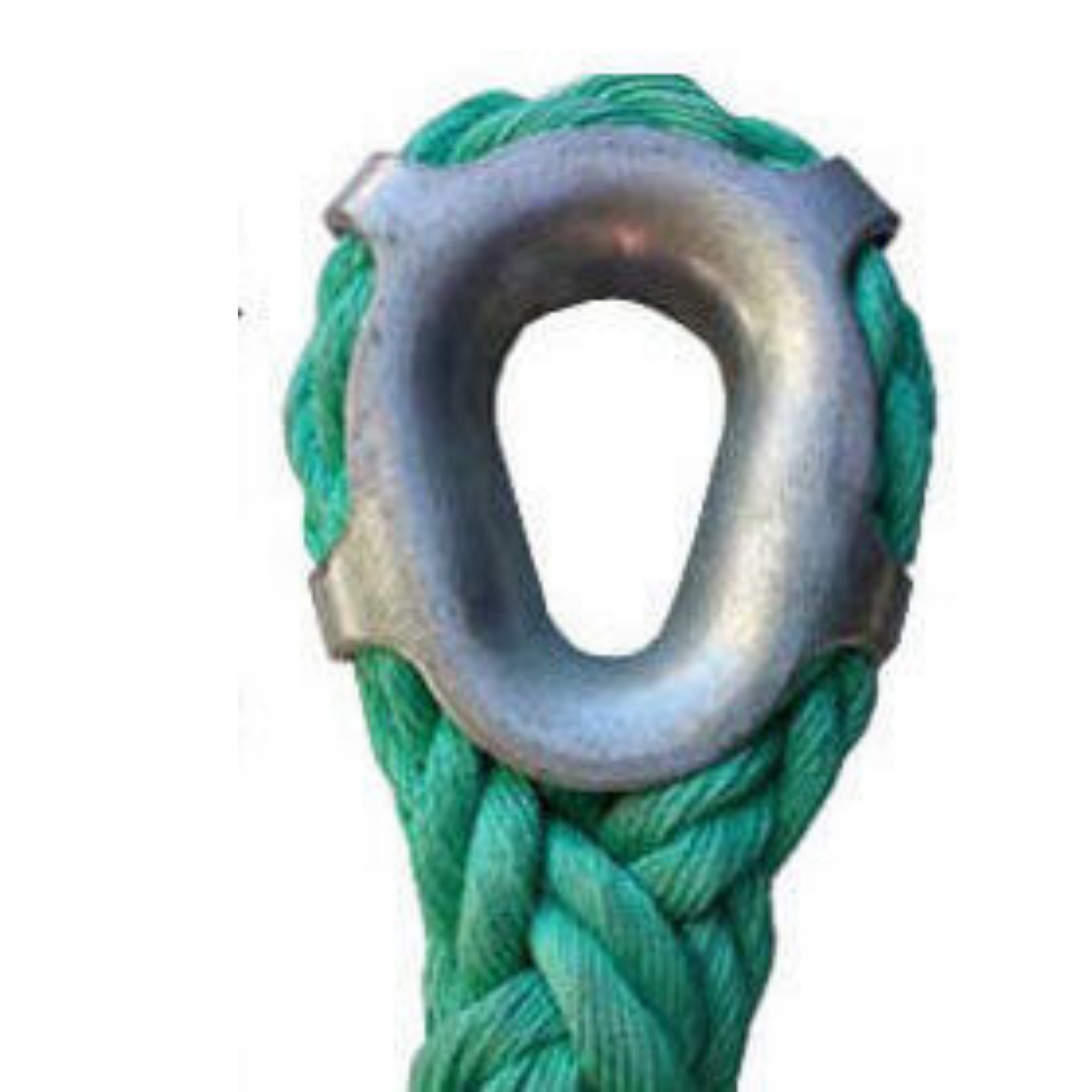

Our Synthetic TIDAL Rope Thimbles offer an innovative, lightweight yet heavy-duty solution for the marine towing and mooring industry. Designed for easy handling and superior strength, they feature a generous inside dimension to accommodate our marine towing shackles or large standard shackles.
Engineered for reliability, these tube type thimbles ensure secure connections for synthetic ropes and long-lasting performance in demanding conditions.

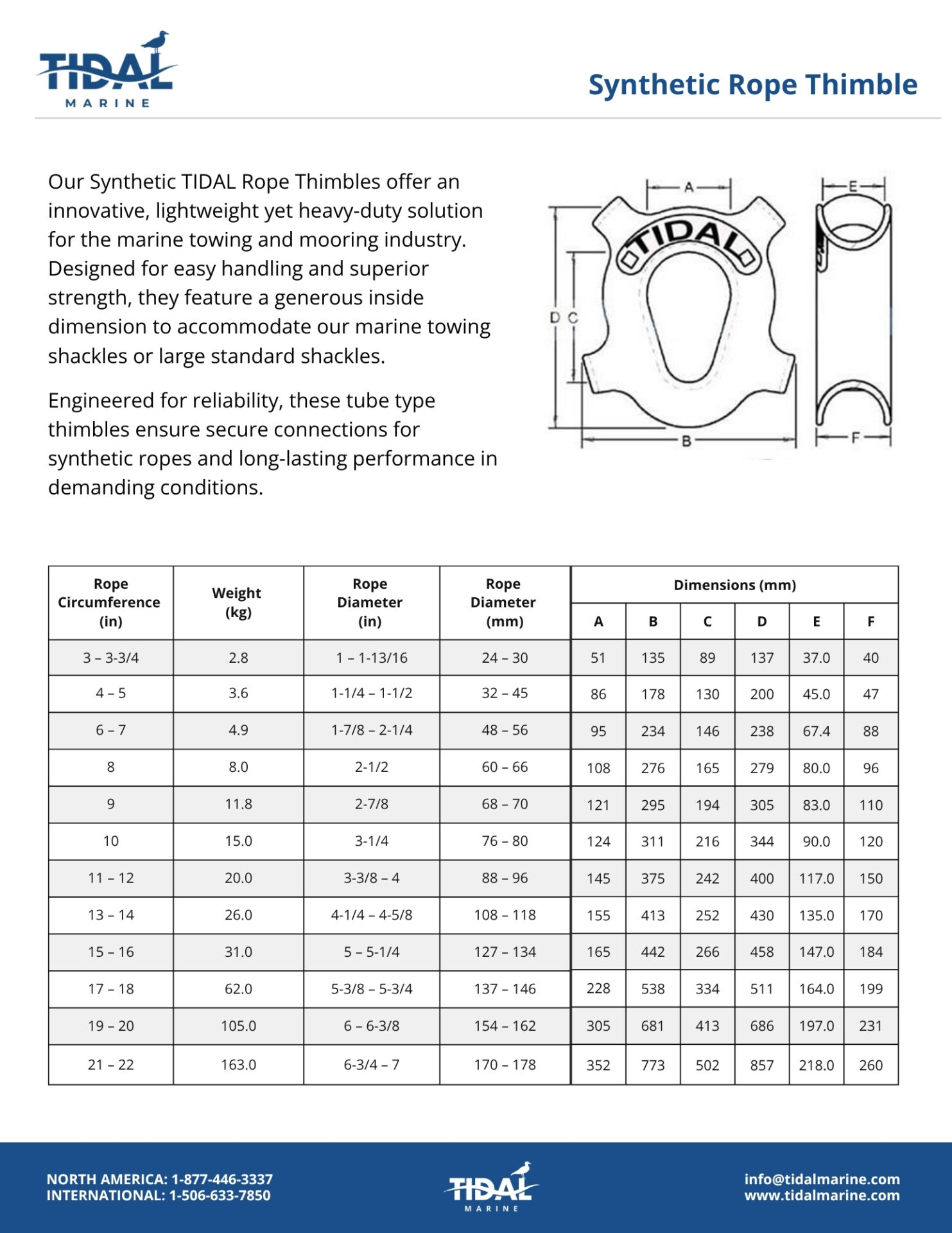

| Rope Circumference (in) | Weight (kg) | Rope Diameter (in) | Rope Diameter (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 3 — 3-3/4 | 2.8 | 1 — 1-13/16 | 24 — 30 | 51 | 135 | 89 | 137 | 37.0 | 40 |
| 4 — 5 | 3.6 | 1-1/4 — 1-1/2 | 32 — 45 | 86 | 178 | 130 | 200 | 45.0 | 47 |
| 6 — 7 | 4.9 | 1-7/8 — 2-1/4 | 48 — 56 | 95 | 234 | 146 | 238 | 67.4 | 88 |
| 8 | 8.0 | 2-1/2 | 60 — 66 | 108 | 276 | 165 | 279 | 80.0 | 96 |
| 9 | 11.8 | 2-7/8 | 68 — 70 | 121 | 295 | 194 | 305 | 83.0 | 110 |
| 10 | 15.0 | 3-1/4 | 76 — 80 | 124 | 311 | 216 | 344 | 90.0 | 120 |
| 11 — 12 | 20.0 | 3-3/8 — 4 | 88 — 96 | 145 | 375 | 242 | 400 | 117.0 | 150 |
| 13 — 14 | 26.0 | 4-1/4 — 4-5/8 | 108 — 118 | 155 | 413 | 252 | 430 | 135.0 | 170 |
| 15 — 16 | 31.0 | 5 — 5-1/4 | 127 — 134 | 165 | 442 | 266 | 458 | 147.0 | 184 |
| 17 — 18 | 62.0 | 5-3/8 — 5-3/4 | 137 — 146 | 228 | 538 | 334 | 511 | 164.0 | 199 |
| 19 — 20 | 105.0 | 6 — 6-3/8 | 154 — 162 | 305 | 681 | 413 | 686 | 197.0 | 231 |
| 21 — 22 | 163.0 | 6-3/4 — 7 | 170 — 178 | 352 | 773 | 502 | 857 | 218.0 | 260 |
