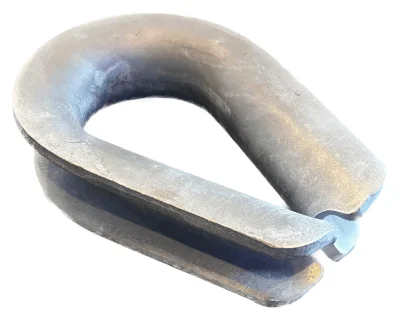

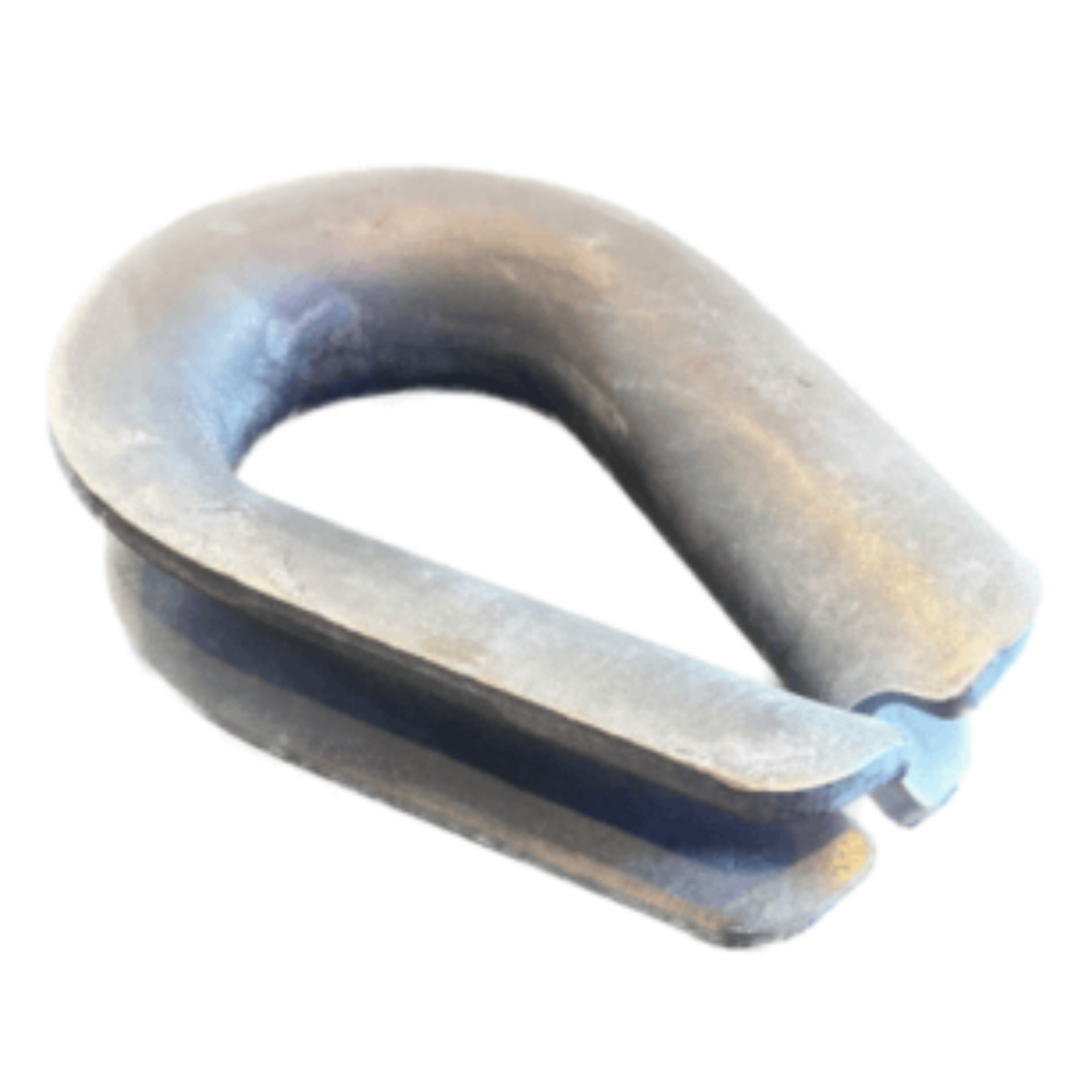

Constructed for durability and safety, our Heavy-Duty Galvanized Thimbles (1/4 ton – 35 ton) are a dependable solution for heavy-duty rigging and mooring needs.

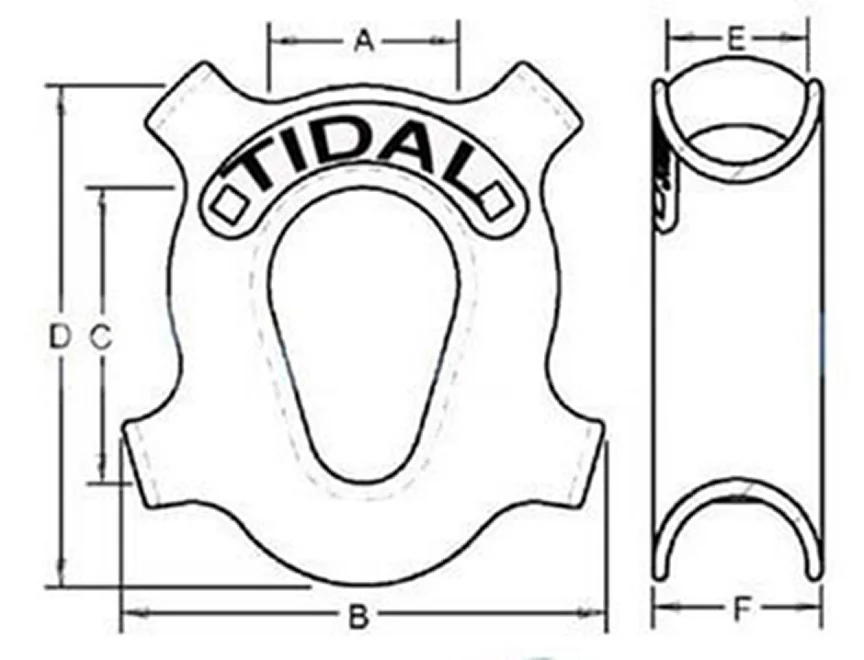

| Nominal (in) | Overall Length A (in) | Overall Width B (in) | Inside Length C (in) | Inside Width D (in) | Weight/100 Pieces (lbs) |
|---|---|---|---|---|---|
| 1/4 | 2-3/16 | 1-1/2 | 1-5/8 | 7/8 | 7.5 |
| 5/16 | 2-1/2 | 1-11/16 | 1-7/8 | 1-1/16 | 14.0 |
| 3/8 | 2-7/8 | 2-1/8 | 2-1/8 | 1-1/8 | 25.0 |
| 7/16 | 3-1/4 | 2-3/8 | 2-3/8 | 1-1/4 | 36.0 |
| 1/2 | 3-5/8 | 2-3/4 | 2-3/4 | 1-1/2 | 61.0 |
| 9/16 | 3-5/8 | 2-11/16 | 2-3/4 | 1-1/2 | 51.0 |
| 5/8 | 4-1/4 | 3-1/3 | 3-1/4 | 1-3/4 | 75.0 |
| 3/4 | 5 | 3-3/16 | 3-3/4 | 2 | 147.0 |
| 7/8 | 5-1/2 | 4-1/4 | 4-1/4 | 2-1/4 | 185.0 |
| 1 | 6-1/8 | 4-15/16 | 4-1/2 | 2-1/2 | 300.0 |
| 1-1/4 | 7 | 5-7/8 | 5-1/8 | 2-7/8 | 410.0 |
| 1-3/8 | 9 | 6-13/16 | 6-1/2 | 3-1/2 | 834.0 |
| 1-1/2 | 9 | 7-1/8 | 6-1/4 | 3-1/2 | 1,200.0 |
| 1-5/8 | 11-1/4 | 8-1/8 | 8 | 4 | 1,625.0 |
| 1-3/4 | 12-6/16 | 8-1/2 | 9 | 4-1/2 | 1,800.0 |
| 2 | 15-1/8 | 10-3/8 | 12 | 6 | 2,600.0 |
| 2-1/4 | 17-1/8 | 11-7/8 | 14 | 7 | 4,300.0 |
